Drive Screws

  • Drive Screws

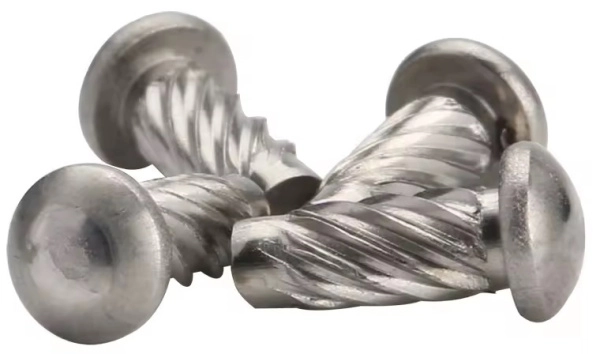

Click image to enlarge
Drive screws are designed for heavy duty fastening applications. Also known as U-drive screws, hammer drive screws, or unslotted round head screws, drive screws’ rounded head style and unique construction make them strong and durable for long-lasting strength. Hammer drive screws are commonly used for attaching nameplates, wall signs, and other similar applications.

Drive screws feature round, unslotted heads, multiple start threads with large helical angles, and an unthreaded pilot point. Similar to nails, hammer drive screws are driven into mating parts with a mallet, hammer, or hammer-drive device for quick and permanent assembly. No tapping threads are required in the mating part, but an undersized predrilled pilot hole is required, and the U-drive screw must be made of harder material than the mating parts.

Jay-Cee Sales & Rivet stocks drive screws in a wide range of sizes, lengths, and materials. With over 160 options to choose from, it’s easy to find the right drive screws for your project. See individual product listings for additional information and specifications.

Follow the links below to view our selection of hammer drive screws, or use the filters at left to narrow your search. Order the drive screws you need, request a quote, or contact us for more information.

Nominal
Screw
Size
Number
of
Thread
Starts

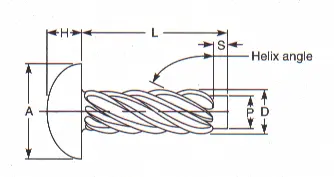

D A H P Recommended
Hole Size
Outside Diameter Head Diameter Head Height Pilot Diameter
Max Min Max Min Max Min Max Min Drill Size
No.
Hole
Diameter
00 6 .060 .057 .099 .090 .034 .026 .049 .046 55 .052
0 6 .075 .072 .127 .118 .049 .041 .063 .060 51 .067
2 8 .100 .097 .162 .146 .069 .059 .083 .080 44 .086
4 7 .116 .112 .211 .193 .086 .075 .096 .092 37 .104
6 7 .140 .136 .260 .240 .103 .091 .116 .112 31 .120
7 8 .154 .150 .285 .264 .111 .099 .126 .122 29 .136
8 8 .167 .162 .309 .287 .120 .107 .136 .132 27 .144
10 8 .182 .177 .359 .334 .137 .123 .150 .146 20 .161
12 8 .212 .206 .408 .382 .153 .139 .177 .173 11 .191
14 9 .242 .236 .457 .429 .170 .155 .202 .198 2 .221



L   Nom. Screw Length 1/8 3/16 1/4 5/16 3/8 1/2 5/8 3/4 1 in and over
Pilot Length .047 .047 .047 .047 .062 .062 .078 .078 .125

Drive Screw Options

Head Style

  • Unslotted round head screws

Material

  • Black oxide coated drive screws
  • Zinc plated steel drive screws
  • 18-8 stainless steel drive screws
  • 316 stainless steel drive screws

Size

  • #2
  • #3
  • #4
  • #5
  • #6
  • #7
  • #8
  • #10
  • #12
  • #14
  • #0
  • #00
  • #5/16

Length

  • 1/8”
  • 3/16”
  • 1/4”
  • 5/16”
  • 3/8”
  • 1/2”
  • 5/8”
  • 3/4”
  • 1”
  • 1-1/4”
