SAE Clevis Pins

  • SAE Clevis Pins
Click image to enlarge

SAE clevis pins are manufactured to meet dimensional standards established by the Society of Automotive Engineers (SAE). Like all clevis pins, SAE rated models are similar to bolts, but without threading and with a cross-hole near the end opposite the flanged head. This hole allows for the insertion of a cotter pin, which holds the clevis pin in place after installation.

Jay-Cee Sales & Rivet stocks SAE clevis pins in all standard SAE sizes and diameters to meet your needs. We offer plain steel SAE clevis pins, as well as zinc-plated steel SAE clevis pins for enhanced corrosion resistance. See individual product listings for additional information and specifications.

Follow the links below to find SAE clevis pins for your application, or use the filters at left to narrow your search results. Order the SAE clevis pins you need today, request a quote, or contact us to learn more.

**only one length per diameter.

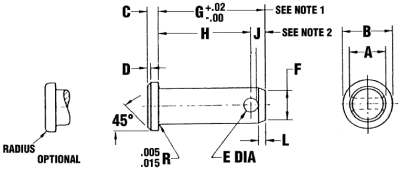

Clevis Pins Specifications

Nominal
Size
or Basic
Pin
Diameter
A B C E F G H Recom-
mended
Cotter
Pin
Nominal
Size
Shank
Diameter
Head
Diameter
Head
Height
Hole
Diameter
Point
Diameter
Pin
Length
Head to
Center
of Hole
Max Min Max Min Max Min Max Min Max Min Basic Max Min
3/16 0.186 0.181 0.320 0.300 0.070 0.050 0.088 0.073 0.15 0.14 0.58 0.504 0.484 1/16 0.062
1/4 0.248 0.243 0.380 0.360 0.100 0.080 0.088 0.073 0.21 0.20 0.77 0.692 0.872 1/16 0.062
5/16 0.311 0.306 0.440 0.420 0.100 0.080 0.119 0.104 0.26 0.25 0.94 0.832 0.812 3/32 0.093
3/8 0.373 0.368 0.510 0.490 0.130 0.110 0.119 0.104 0.33 0.32 1.06 0.958 0.938 3/32 0.093
7/16 0.436 0.431 0.570 0.550 0.160 0.140 0.119 0.104 0.39 0.38 1.19 1.082 1.062 3/32 0.093
1/2 0.496 0.491 0.630 0.610 0.160 0.140 0.151 0.136 0.44 0.43 1.36 1.223 1.203 1/8 0.125
5/8 0.621 0.616 0.820 0.800 0.210 0.190 0.151 0.136 0.56 0.55 1.16 1.473 1.453 1/8 0.125
3/4 0.746 0.741 0.940 0.920 0.260 0.240 0.182 0.167 0.68 0.67 1.91 1.739 1.719 5/32 0.156
7/8 0.871 0.866 1.040 1.020 0.320 0.300 0.182 0.167 0.80 0.79 2.16 1.989 1.969 5/32 0.156
1 0.996 0.991 1.190 1.170 0.350 0.330 0.182 0.167 0.93 0.92 2.41 2.239 2.219 5/32 0.156

  1. Lengths tabulated are intended for use with standard clevises, without spacers.
    Where required, it is recommended that other pin lengths be limited, if possible
    to nominal length increments of 0.06 in.
  2. Basic "J" dimension (distance from centerline of hole to end of pin) is specified
    for calculating hole location from underside of head on pins of lengths not tabulated.
  3. Reference dimension provided for convenience in design layout and is not subject
    to inspection.

Options for SAE Clevis Pins

Shank Diameter

  • 3/16”
  • 1/4”
  • 5/16”
  • 3/8”
  • 7/16”
  • 1/2”
  • 5/8”
  • 3/4”
  • 7/8”
  • 1”

Material/Finish

  • Plain finish steel SAE clevis pins
  • Zinc plated steel SAE clevis pins
We also offer non-SAE grooved clevis pins, steel clevis pins, zinc-plated clevis pins, and 18-8 stainless steel clevis pins, as well as a full selection of accompanying cotter pins.

Contact Us for SAE Clevis Pins & More

Jay-Cee Sales & Rivet is your #1 source for SAE clevis pins and a huge selection of other top quality fasteners solutions. Order today, request a quote, or contact us for SAE clevis pins for your project.
