Aluminum 8-32 Post and Screws, Chicago Screws, Barrel Nuts

  • Aluminum Post and Screws, Chicago Screws, Barrel Nuts
Click image to enlarge

Aluminum Post and Screws, Chicago Screws, Barrel Nuts

203" dia. x .415" head O.D. - unslotted



***Post and Screws Sold Separately***



SCREWS -  (8-32 thread dia. x .415" head O.D. - slotted). Aluminum. For use in 7/32" holes.


BOLT/POST EXTENSIONS
  Item Length Head
Style
S-187A Removable
Screw
3/16 Slotted Drive
S-250A Removable
Screw
1/4 Slotted Drive
S-375A Removable
Screw
3/8 Slotted Drive




Part Number Description
B-250AEX 1/4 BOLT EXTENTION, ALUMINUM
B-500AEX 1/2 BOLT EXTENTION, ALUMINUM
B-750AEX 3/4 BOLT EXTENTION, ALUMINUM
B-1000AEX 1" BOLT EXTENTION, ALUMINUM

POST-have a .203 body diameter x .415 head OD-unslotted.

Part No. Description Lenth Head Type Mating Screw
(sold separately)
B-125A Binder Post 1/8" Open End, No Drive S-187A
B-187A Binder Post 3/16" Open End, No Drive S-250A
B-250A Binder Post 1/4" Open End, No Drive S-250A
B-250AE Binder Post 1/4" Closed End, No Drive S-187A
B-375A Binder Post 3/8" Open End, No Drive S-375A
B-375AE Binder Post 3/8" Closed End, No Drive S-250A
B-500AE Binder Post 1/2" Closed End, No Drive S-375A
B-625AE Binder Post 5/8" Closed End, No Drive S-375A
B-750AE Binder Post 3/4" Closed End, No Drive S-375A
B-875AE Binder Post 7/8" Closed End, No Drive S-375A
B-1000AE Binder Post 1" Closed End, No Drive S-375A
B-1250AE Binder Post 1-1/4" Closed End, No Drive S-375A
B-1500AE Binder Post 1-1/2" Closed End, No Drive S-375A
B-1750AE Binder Post 1-3/4" Closed End, No Drive S-375A
B-2000AE Binder Post 2" Closed End, No Drive S-375A
B-2250AE Binder Post 2-1/4" Closed End, No Drive S-375A
B-2500AE Binder Post 2-1/2" Closed End, No Drive S-375A
B-2750AE Binder Post 2-3/4" Closed End, No Drive S-375A
B-3000AE Binder Post 3" Closed End, No Drive S-375A
B-3250AE Binder Post 3-1/4" Closed End, No Drive S-375A
B-3500AE Binder Post 3-1/2" Closed End, No Drive S-375A
B-4000AE Binder Post 4" Closed End, No Drive S-375A
B-4500AE Binder Post 4-1/2" Closed End, No Drive S-375A
B-5000AE Binder Post 5" Closed End, No Drive S-375A
B-6000AE Binder Post 6" Closed End, No Drive S-375A

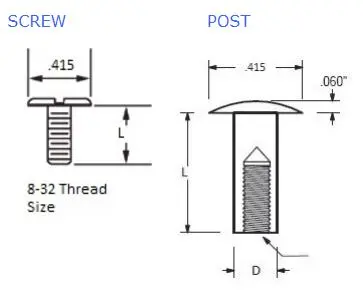

A post and screw connector is a type of fastener comprised of a barrel-shaped, internally-threaded boss (post) with a protruding flange, paired with a matching machine screw. The post is installed in a drilled hole in the part or surface being fastened, with the flange providing the bearing surface. The corresponding screw installs flush on the opposite side of the hole. Also known as Chicago screws, barrel nuts, or connector bolts, post and screw connectors are a low-profile fastener option.

Jay-Cee Sales & Rivet stocks aluminum posts and accompanying aluminum screws in a variety of lengths and styles, all with 8-32 threads. Our aluminum post and screw fasteners are designed for use in 7/32” holes.

We carry aluminum posts in slotted drive, closed end/no drive, and open end/no drive styles. Posts and post extensions in lengths from 1/8” to 6” are available, making it easy to find the right aluminum Chicago screws for your unique needs.

Follow the links below to find 8-32 aluminum barrel nuts for your specific application, or use the filters at left to narrow your search results. Order the aluminum posts and aluminum screws you need, request a quote, or contact us for more information.


Aluminum Post and Screws, Chicago Screws, Barrel Nuts

203" dia. x .415" head O.D. - unslotted



***Post and Screws Sold Separately***



SCREWS -  (8-32 thread dia. x .415" head O.D. - slotted). Aluminum. For use in 7/32" holes.

  ITEM LENGTH HEAD STYLE
S-187A Removable Screw 3/16" Slotted Drive
S-250A Removable Screw 1/4" Slotted Drive
S-375A Removable Screw 3/8" Slotted Drive



BOLT/POST EXTENSIONS



Part Number Description
B-250AEX 1/4 BOLT EXTENTION, ALUMINUM
B-500AEX 1/2 BOLT EXTENTION, ALUMINUM
B-750AEX 3/4 BOLT EXTENTION, ALUMINUM
B-1000AEX 1" BOLT EXTENTION, ALUMINUM

POST-have a .203 body diameter x .415 head OD-unslotted.

Part No. Description Lenth Head Type Mating Screw
(sold separately)
B-125A Binder Post 1/8" Open End, No Drive S-187A
B-187A Binder Post 3/16" Open End, No Drive S-250A
B-250A Binder Post 1/4" Open End, No Drive S-250A
B-250AE Binder Post 1/4" Closed End, No Drive S-187A
B-375A Binder Post 3/8" Open End, No Drive S-375A
B-375AE Binder Post 3/8" Closed End, No Drive S-250A
B-500AE Binder Post 1/2" Closed End, No Drive S-375A
B-625AE Binder Post 5/8" Closed End, No Drive S-375A
B-750AE Binder Post 3/4" Closed End, No Drive S-375A
B-875AE Binder Post 7/8" Closed End, No Drive S-375A
B-1000AE Binder Post 1" Closed End, No Drive S-375A
B-1250AE Binder Post 1-1/4" Closed End, No Drive S-375A
B-1500AE Binder Post 1-1/2" Closed End, No Drive S-375A
B-1750AE Binder Post 1-3/4" Closed End, No Drive S-375A
B-2000AE Binder Post 2" Closed End, No Drive S-375A
B-2250AE Binder Post 2-1/4" Closed End, No Drive S-375A
B-2500AE Binder Post 2-1/2" Closed End, No Drive S-375A
B-2750AE Binder Post 2-3/4" Closed End, No Drive S-375A
B-3000AE Binder Post 3" Closed End, No Drive S-375A
B-3250AE Binder Post 3-1/4" Closed End, No Drive S-375A
B-3500AE Binder Post 3-1/2" Closed End, No Drive S-375A
B-4000AE Binder Post 4" Closed End, No Drive S-375A
B-4500AE Binder Post 4-1/2" Closed End, No Drive S-375A
B-5000AE Binder Post 5" Closed End, No Drive S-375A
B-6000AE Binder Post 6" Closed End, No Drive S-375A

Options for 8-32 Aluminum Chicago Screws

NOTE: Aluminum posts (barrels), aluminum screws, and aluminum post extensions are sold separately.

Length

  • 1/8”
  • 3/16”
  • 1/4”
  • 3/8”
  • 1/2”
  • 5/8”
  • 3/4”
  • 7/8”
  • 1”
  • 1-1/4”
  • 1-1/2”
  • 1-3/4”
  • 2”
  • 2-1/4”
  • 2-1/2”
  • 2-3/4”
  • 3”
  • 3-1/4”
  • 3-1/2”
  • 4”
  • 4-1/2”
  • 5”
  • 6”

Style

  • 8-32 slotted drive
  • 8-32 with 0.203” body diameter
  • 8-32 with 0.203” body diameter, closed end, no drive
  • 8-32 with 0.203” body diameter, open end, no drive

Part

  • Aluminum post
  • Aluminum screw
  • Aluminum post extension

Material/Finish

  • Aluminum, plain finish

We also offer black anodized aluminum post and screw fasteners, stainless steel post and screw fasteners, brass binder  post and screw fasteners, steel post and screw fasteners, and plastic binder post and screw fasteners.

Contact Us for Aluminum Posts & Screws

Jay-Cee Sales & Rivet is your #1 source for aluminum post and screw fasteners. Order today, request a quote, or contact us for the aluminum Chicago screws you need.
