Plastic Binder Post and Screws

  • Plastic Binder Post and Screws
Click image to enlarge

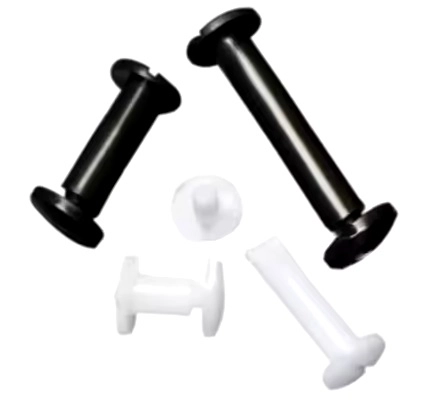

A post and screw binder is a type of fastener that consists of an internally-threaded, barrel-shaped boss (post) with a protruding flange and a corresponding machine screw. The post is installed in a drilled hole in the surface or part being joined; the flange provides the bearing surface. The matching screw is inserted into the hole from the opposite side and threaded into the post, creating a flush surface when tightened. Also called Chicago screws, barrel nuts, or connector bolts, post and screw binders provide a low-profile option for numerous fastening applications.

Jay-Cee Sales & Rivet carries plastic binder posts and plastic binder post screws in multiple sizes and styles. Four standard lengths from 1/4” to 3/4” are available to meet your needs. All of our plastic Chicago screws are designed for use in 1/4" holes. Available in white or black plastic.

Follow the links below to find plastic binder posts and plastic binder post screws for your application, or use the filters at left to narrow your search results. Order plastic barrel nuts today, request a quote, or contact us for more information.


Large, low profile matching slotted heads on both the post and screw allow for a nice, clean look. Screw can be pushed in for fast assembly. For best results, insert screw length completely.
Removable and reusable. Each assembly consists of one post and one screw. Binding capacity is determined by length of post used. Otherwise known as Quick-Connect or Adjust-A-Locks
Post and screw sold separately
Female posts are .240" barrel dia. x .562" head O.D. - slotted
Male screws are 10-24 thread dia. x .562" head O.D. - slotted
For use in 1/4" holes
White plastic material
Also available in black


***Post and Screws Sold Separately***

Rapid Assembly Plastic Binder Post & Screws   Rapid Assembly Plastic Binder Post & Screws - 2



PART # Item Length Head Type Color Mating Screw (sold separately)
S-250PB Removable Screw  1/4 Slotted Drive black
S-375PB Removable Screw  3/8 Slotted Drive black
B-250PBE Binder Post  1/4 Closed End, Slotted Drive black S-250PB
B-375PBE Binder Post  3/8 Closed End, Slotted Drive black S-375PB
B-500PBE Binder Post  1/2 Closed End, Slotted Drive black S-375PB
B-750PBE Binder Post  3/4 Closed End, Slotted Drive black S-375PB



PART # Item Length Head Type Color Mating Screw (sold separately)
S-250PW Removable Screw  1/4 Slotted Drive white
S-375PW Removable Screw  3/8 Slotted Drive white
B-250PWE Binder Post  1/4 Closed End, Slotted Drive white S-250PW
B-375PWE Binder Post  3/8 Closed End, Slotted Drive white S-375PW
B-500PWE Binder Post  1/2 Closed End, Slotted Drive white S-375PW
B-750PWE Binder Post  3/4 Closed End, Slotted Drive white S-375PW

Options for Plastic Chicago Screws

NOTE: Plastic binder posts and plastic binder post screws are sold separately.

Length

  • 1/4”
  • 3/8”
  • 1/2”
  • 3/4”

Style

  • Slotted drive
  • Closed end, slotted drive

Part

  • Plastic binder post (barrel)
  • Plastic binder post screw

Material/Finish

  • White plastic, plain finish
  • Black plastic, plain finish

We also offer aluminum post and screw fasteners, black anodized aluminum post and screw fasteners, stainless steel post and screw fasteners, steel post and screw fasteners, and brass binder  post and screw fasteners.

Contact Us for Plastic Binder Posts & Screws

Make Jay-Cee Sales & Rivet your first choice for plastic binder posts and plastic binder post screws. Order today, request a quote, or contact us for the plastic barrel nuts you need.
