Large Flange Rivet Nuts W/ Half Hex Body

  • Half Hex Body Large Flange Steel Rivet Nuts
Click image to enlarge

Half hex body large flange rivet nuts are specifically designed for securing and fastening metal parts and pieces. The innovative design of half hex threaded inserts provides an ideal fastening solution for a wide range of applications. In addition, due to the half hex rivet nuts unique structural design it is extremely versatile in nature, providing an array of benefits for your project needs. Half hex large flange rivet nuts are extremely versatile and can assist your project in ways that other fasteners can’t.

Jay-Cee Sales & Rivet, Inc. stocks half hex body large flange rivet nuts in the sizes and styles that you need to complete your projects quickly and effectively. We also offer a wide range of half hex rivet nuts with a variety of grip ranges to fulfill all your application requirement needs. Steel constructed half hex threaded inserts are respected for their structural dependability and are frequently used for thin walled applications. Jay-Cee Sales & Rivet are your trusted steel rivet nuts suppliers. We provide you with the highest quality large flange rivet nuts in the industry.

Contact us for more information regarding our half hex rivet nut options. You can also request a quote for an in-depth price analysis on any of our steel threaded inserts. For light duty, thin or brittle material applications that need to be treated gently, we also offer jack nuts in numerous materials, sizes and styles.

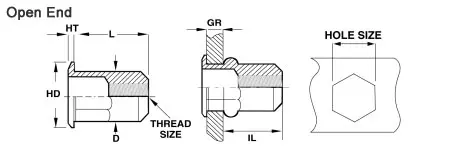

HEX Specifications

Material:
Steel 1008/1010
Finish:
 Zinc Plated-Yellow Dichromate per ASTM B633 Fe/Zn 8, Type II

U.S. Measure

THREAD SIZE

GRIP RANGE

L

HD

HT

D

IL

HOLE SIZE

Part Numbers

Size

Min.

Max.

± .015

± .010 ±.025*

± .003

Max.

Max.

 +.004/-.000

RN632080SLX

6-32 UNC

.020

.080

.385

.375

.027

.249

.295

.250

RN632130SLX

6-32 UNC

.080

.130

.435

.375

.027

.249

.295

.250

RN832080SLX

8-32 UNC

.020

.080

.385

.375

.027

.249

.295

.250

RN832130SLX

8-32 UNC

.080

.130

.435

.375

.027

.249

.295

.250

RN1024130SLX

10-24 UNC

.020

.130

.435

.390

.027

.280

.275

.281

RN1024225SLX

10-24 UNC

.130

.225

.535

.390

.027

.280

.275

.281

RN1032130SLX

10-32 UNF

.020

.130

.435

.390

.027

.280

.275

.281

RN1032225SLX

10-32 UNF

.130

.225

.535

.390

.027

.280

.275

.281

RN2520165SLX

1/4-20 UNC

.027

.165

.585

.510

.030

.374

.400

.375

RN2520260SLX

1/4-20 UNC

.165

.260

.685

.510

.030

.374

.400

.375

RN2528165SLX

1/4-28 UNF

.027

.165

.585

.510

.030

.374

.400

.375

RN2528260SLX

1/4-28 UNF

.165




Half Hex Rivet Nut Features & Benefits

Large flange rivet nuts provide strength through a unique design that is perfect for thin-walled applications. These half hex steel rivet nuts provide numerous features and benefits for your specific project needs, they include:
  • Sleek design
  • Numerous sizes
  • Provides blind assembly
  • No thermal stress
  • Large diameter head
  • Closed end keeps out debris
  • Available in inch or metric threads

Large Flange Rivet Nut Applications

Half hex threaded inserts are commonly used for numerous applications throughout a wide range of industries, these include but are not limited to:
  • Automotive
  • Medical Technology
  • Plastics
  • Electronics
  • Engineering
  • And more
Half hex threaded inserts are extremely robust, adaptable, and reliable. Their versatile nature will allow you to reduce or eliminate the use of other types of hardware, which could potentially save you time and money. Jay-Cee Sales & Rivets has extensive knowledge in all areas related to selection and use of industrial fasteners. We have been providing quality rivets and fasteners to individuals and companies since 1948, contact us today.

Large Flange Rivet Nut Size Options

Body Diameter
  • Minimum: 0.25
  • Maximum: 12.70
Length
  • Minimum: 0.385
  • Maximum: 21.46
Thread Size
  • Minimum: 6-32
  • Maximum: M5 - .80
Grip Range
  • Minimum: 0.02 – 0.080
  • Maximum: 4.2- 6.6

Contact Jay-Cee Sales & Rivet for Half Hex Body Large Flange Rivet Nuts Today

Contact us for more information regarding our steel large flange rivet nut options, or various other styles of rivets and fastener products. You can also request a quote for an in-depth price analysis on steel half hex rivet nuts today.
