Gesipa Bulb-Tite Blind Rivets Handle Your Attaching Problems
with Ease and at Low Costs

Other Types of Blind Rivets:

Open End Blind Rivets Closed End Blind Rivets Multi-grip Blind Rivets

2 Piece Mate Rivets Bulbex /Tribex Blind Rivets Bulb-tite Blind Rivets

Peel Type Blind Rivets Avinox Blind Rivets Interlock Structural Blind Rivets

Q Rivets Structural Blind Rivets

RV6601 Countersunk Head (82ƒ)	RV6602 Low Profile Flat Head

RV6603 & RV6604 Dome Head (Protruding Crown)	RV6605 Large Flange Head (Protruding Crown)

RV6606, REV6676, & RV6696 Dome Head (Recessed Crown)	RV6607 Shaveable Brazier Head

HOW THE BULB-TITE WORKS: During installation the rivet body folds into three separate legs, forming the blind-side upset head. The Bulb-tite mandrel breaks off *flush with the rivet head. *Flush mandrel break requires use of special Bulb-tite installation tool nose tip.WEATHER TIGHT: A special nose tip on the rivet installation tool crimps a crown feature on the rivet head. This crown-crimp effectively seals the rivet bore off from intrusion of dirt and moisture. Adding the optional washer to the Bulb-tite, creates an additional seal around the perimeter of the rivet head, to stop moisture from intruding beneath the rivet head. HIGH STRENGTH: Another benefit of the Bulb-tite rivetís retained mandrel core is the added strength it provides. Bulb-tite rivets are less prone to failure in high shear loads. HIGH CLAMPING: The large three-legged upset head evenly distributes the Bulb-tite rivetís high clamp load over a broader bearing surface than do conventional blind rivets. This enables soft, thin, ductile and even brittle materials to be securely clamped without deformation, cracking or other damage to the application. CHOICE OF FINISHED APPEARANCE: Bulb-tite rivets are offered in a variety of head styles. Standard Dome, Low Profile, Large Flange and Countersunk head styles are available. Color matched plastic finish caps can be snapped onto certain Bulb-tite head styles to conceal installed rivet heads. The unique Shaveable Head Bulb-tite was specifically designed for use in heavy truck and trailer applications where solid rivets are used. They are ideal for repair of solid riveted assemblies where access to the applicationís blind side may be no longer accessible. The Shaveable Bulb-tite rivet head is finished using a special head-shaving tool. Shaved Bulb-tite rivet heads then match the appearance of solid rivets in the assembly. MATERIAL CHOICES: The standard Bulb-tite rivets are made of aluminum alloy, providing a durable non-rusting fastener that can withstand weather-related corrosion. Some Bulb-tite sizes are also available in steel and monel materials where higher strength is required

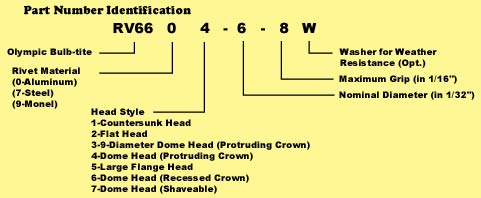

Bult-tite Part Numbers

Part Numbers

A - Body Diameter
B - Head Height
D - Head Diameter
F - Blind Side Protrusion
L - Rivet Body Length

** Parts ending in "W" include a rubber washer for added weather resistance.

ALUMINUM RIVET/ALUMINUM MANDREL
Head Style	Rivet Dia. Nom.	GESIPA Part Number	Grip Range	Hole Size Drill No.	Dimensions (Inches)					Typ. Strengths (lbs.)
Head Style	Rivet Dia. Nom.	GESIPA Part Number	Grip Range	Hole Size Drill No.	D	B	A	L	F	Shear	Tensile
Countersunk Head Recessed Crown	3/16"	RV6601-6-04	.106-.250	.209-.221 #4	.205	.103 Ref.	.340 Min.	.770	.935	675	450
		RV6601-6-06	.187-.375					.895	1.060
		RV6601-6-08	.312-.500					1.020	1.185
		RV6601-6-10	.437-.625					1.145	1.310
		RV6601-6-12	.563-.750					1.270	1.435
	1/4"	RV6601-8-04	.150-.250	.250-.263 1/4"	.246	.147 Ref.	.452	.815	1.005	1100	675
		RV6601-8-06	.187-.375					.940	1.130
		RV6601-8-08	.250-.500					1.065	1.255
Low Profile Flat Head	5/32"	RV6602-5-04 RV6602-5-04W	.125-.250	.162-.167 #20	.161	.057	.355-.375	.790	.862	350	225
		RV6602-5-06 RV6602-5-06W	.187-.375					.852	.987
		RV6602-5-08 RV6602-5-08W	.250-.500					.977	1.112
	3/16"	RV6602-6-04 RV6602-6-04W	.125-.250	.209-.221 #4	.205	.062	.430-.455	.770	.935	675	450
		RV6602-6-06 RV6602-6-06W	.187-.375					.895	1.060
		RV6602-6-08 RV6602-6-08W	.250-.500					1.020	1.185
		RV6602-6-10 RV6602-6-10W	.375-.625					1.145	1.310
		RV6602-6-12 RV6602-6-12W	.500-.750					1.270	1.435
Dome Head Protruding Crown	5/32"	RV6604-5-04 RV6604-5-04W	.067-.250	.162-.167 #20	.161	.074	.335-.350	.805	.925	350	225
	5/32"	RV6604-5-08 RV6604-05-08W	.250-.500	.162-.167 #20	.161	.074	.335-.350	.992	1.112	350	225
	3/16"	RV6604-6-03 RV6604-6-03W	.050-.187	.209-.221 #4	.205	.125	.430-.455	.707	.844	675	450
		RV6604-6-04 RV6604-6-04W	.062-.250					.770	.907
		RV6604-6-06 RV6604-6-06W	.187-.375					.895	1.032
		RV6604-6-08 RV6604-6-08W	.312-.500					1.020	1.157
		RV6604-6-10 RV6604-6-10W	.437-.625					1.145	1.282
		RV6604-6-12 RV6604-6-12W	.563-.750					1.270	1.407
	1/4"	RV6604-8-04 RV6604-8-04W	.062-.250	.250-.263 1/4	.246	.118	.555-.565	.815	1.005	1100	675
		RV6604-8-06 RV6604-8-06W	.125-.375					.940	1.130
		RV6604-8-08 RV6604-8-08W	.250-.500					1.065	1.255
		RV6604-8-10 RV6604-8-10W	.375-.625					1.190	1.360
	9/32"	RV6603-9-03 RV6603-9-03W	.032-.187	.304-.3125 5/16	.304	.150	.610-.620	.863	1.000	1500	1100
		RV6603-9-06 RV6603-9-06W	.032-.375					1.110	1.325
		RV6603-9-10 RV6603-9-10W	.250-.625					1.360	1.575
		RV6603-9-12 RV6603-9-12W	.375-.750					1.485	1.700
Large Flange Prot. Crown	9/32"	RV6605-9-06 RV6605-9-06W	.042-.375	.308-.327 5/16	.304	.150	.720-.765	1.110	1.325	1500	1100
		RV6605-9-10 RV6605-9-10W	.250-.625					1.360	1.575
		RV6605-9-12 RV6605-9-12W	.375-.750					1.485	1.700
Low Profile Head Recessed Crown	3/16"	RV6606-6-03 RV6606-6-03W	.050-.187	.209-.221 #4	.205	.099	.446-.492	.707	.844	675	450
		RV6606-6-04 RV6606-6-04W	.062-.250					.770	.907
		RV6606-6-06 RV6606-6-06W	.187-.375					.895	1.032
		RV6606-6-08 RV6606-6-08W	.312-.500					1.020	1.157
		RV6606-6-10 RV6606-6-10W	.437-.625					1.145	1.282
		RV6606-6-12 RV6606-6-12W	.563-.750					1.270	1.407
	1/4"	RV6606-8-04 RV6606-8-04W	.040-.250	.250-.263 1/4	.246	.116	.535-.550	.815	1.005	1100	675
		RV6606-8-06 RV6606-8-06W	.125-.375					.940	1.130
		RV6606-8-08 RV6606-8-08W	.250-.500					1.065	1.255
		RV6606-8-10 RV6606-8-10W	.375-.625					1.190	1.380

**Part numbers in RED need to be ordered by phone at 248-478-6416.

** Parts ending in "W" include a rubber washer for added weather resistance.

SHAVEABLE SERIES

ALUMINUM RIVET/ALUMINUM MANDREL
Head Style	Rivet Dia. Nom.	GESIPA Part Number	Grip Range	Hole Size Drill No.	Dimensions (Inches)					Typ. Strengths (lbs.)
Head Style	Rivet Dia. Nom.	GESIPA Part Number	Grip Range	Hole Size Drill No.	D	B	A	L	F	Shear	Tensile
Shaveable Brazier Head	5/32"	RV6607-5-05 RV6607-5-05W	.020-.312	.162-.167 #20	.161	.072	.312	.800	.920	350	225
	3/16"	RV6607-6-06 RV6607-6-06W	.050-.375	.209-.221 #4	.205	.094	.469	.875	1.060	675	450
	3/16"	RV6607-6-08 RV6607-6-08W	.050-.500	.209-.221 #4	.205	.094	.469	1.000	1.185	675	450
	1/4"	RV6607-8-08 RV6607-8-08W	.050-.500	.250-.263 1/4	.246	.120	.469	1.045	1.235	1100	675

STEEL RIVET/STEEL MANDREL
Head Style	Rivet Dia. Nom.	GESIPA Part Number	Grip Range	Hole Size Drill No.	Dimensions (Inches)					Typ. Strengths (lbs.)
Head Style	Rivet Dia. Nom.	GESIPA Part Number	Grip Range	Hole Size Drill No.	D	B	A	L	F	Shear	Tensile
Countersunk Head	1/4"	RV6671-0804	.150-.250	.250-.263 1/4	.246	.147	.477-.485	.915	1.005	1250	950
		RV6671-0806	.187-.375					1.040	1.130
		RV6671-0808	.250-.500					1.165	1.355
Dome Head Recessed Crown	1/4"	RV6676-0804	.040-.250	.250-.263 1/4	.246 Max	.116	.535-.550	.815	1.005	1250	950
		RV6676-0806	.125-.375					.940	1.130
		RV6676-0808	.250-.500					1.065	1.255
		RV6676-0810	.375-.625					1.190	1.380
