Q style blind rivets provide superior shear strength, with 100% mandrel retention. When properly installed, the unique design of Q rivets creates a weather-tight seal with high vibration resistance.

Jay-Cee Sales & Rivet stocks a large inventory of Q style structural blind rivets, with a variety of grip ranges, lengths, and diameters available to meet your needs. Two material options are available for Q rivets: aluminum rivet/aluminum mandrel and aluminum rivet/steel mandrel.

View our inventory (below) to find the Qs style blind rivets you need.

We also offer Interlock®, Kliklock®, Magna-Lok®, and Ultragrips® structural blind rivets.

Q™ RIVET Fastening System

Jay-Cee Sales and Rivet Inc. offers a large selection of Q™ RIVET blind rivets. Already know what kind of blind rivet you need? Call us today to place your order!

Q™ RIVET Fastening System

Q™ Rivet Fastening System Benefits:

  • Good Shear Strength: Rivet mandrel plugs the entire length of the rivet body, providing high shear strength values for structural or load-bearing applications.
  • Sealing Capability: Specially designed mandrel is engineered to effect a weather-tight seal when the rivet is installed properly.
  • Vibration Resistant: Rivet body curls over end of mandrel to ensure its positive retention.

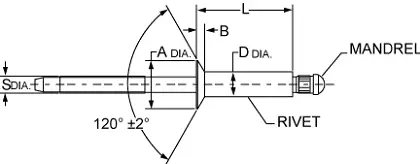

Countersunk Mandrel / Rivet

Q™ RIVET Fastening System

Protruding Head Mandrel / Rivet

Q™ RIVET Fastening System

Large Flange Mandrel / Rivet

Q™ RIVET Fastening System

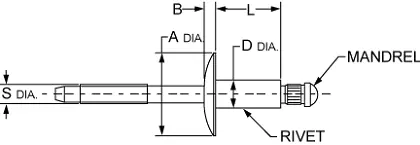

Protruding - Large Flange - Countersunk Product Specifications

Nom.
Rivet Diam.
Hole Size &
Drill No.
S
Mand. Diam.
D
Rivet Diam.
Protruding Large
Flange
Countersunk
A
Head Diam.
B
Max.
Head Thick.
A
Head Diam.
B
Max.
Head Thick.
A
Head Diam.
B
Head
Thick.
1/8" (3,2) .129-.133 (#30)
(3,28-3,38)
.075 (1,91) .125 (3,18) .250 (6,35) .040 (1,07) .375 (9,53) .065 (1,65) .226 (5,74) .032 (0,81)
5/32" (4,0) .160-.164 (#20)
(4,06-4,17)
.094 (2,39) .156 (3,96) .312 (7,920) .050 (1,27) .469 (11,91) .075 (1,91) .281 (7,14) .040 (1,02)
3/16" (4,8) .192-.196 (#11)
(4,88-4,98)
.114 (2,90) .187 (4,75) .375 (9,53) .060 (1,45) .625 (15,88) .092 (2.34) .344 (8,74) .050 (1,27)
1/4" (6,4) .257-.261 (F)
(6,53-6,63)
.151 (3,84) .250 (6,35) .500 (12,70) .080 (1,96) .750 (19,50) .107 (2,72) .468 (11,89) .071 (1,80)

*L - Length varies with each grip length (see following pages). (1) Mandrels may be either smooth or serrated, manufacturer's option.

Rivet Shear and Tensile Strength lbs. f (N) Tested per IFI 135

Q™ Rivet Specifications

Q™ Rivet Diam. Series AA
Alum. Rivet
Alum. Mand.
Series AS
Alum. Rivet
Steel Mand.
Series SS
Steel Rivet
Steel Mand.
Series MS
Monel Rivet
Steel Mand.
Series FF
Stain. Rivet
Stain. Mand.
Shear Tens. Shear Tens. Shear Tens. Shear Tens. Shear Tens.
1/8" (3,2) 225 (1001) 250 (1112) 350 (1557) 325 (1445) 500 (2224) 400 (1779) 650 (2891) 525 (2335) 700 (3114) 600 (2669)
5/32" (4,0) 325 (1445) 325 (1445) 525 (2335) 450 (2002) 700 (3114) 550 (2446) 950 (4226) 900 (4003) 1050 (4670) 1000 (4448)
3/16" (4,8) 500 (2224) 450 (2002) 750 (3336) 650 (2891) 1050 (4670) 825 (3670) 1450 (6450) 1100 (4893) 1650 (7339) 1300 (5782)
1/4" (6,4) 850 (3781) 750 (3336) 1250 (5560) 1050 (4670) 1750 (6450) 1450 (6450) 2350 (10453) 2150 (9563) 2450 (10898) 2250 (10008)

Note: This table reflects typical results in test parameters.
