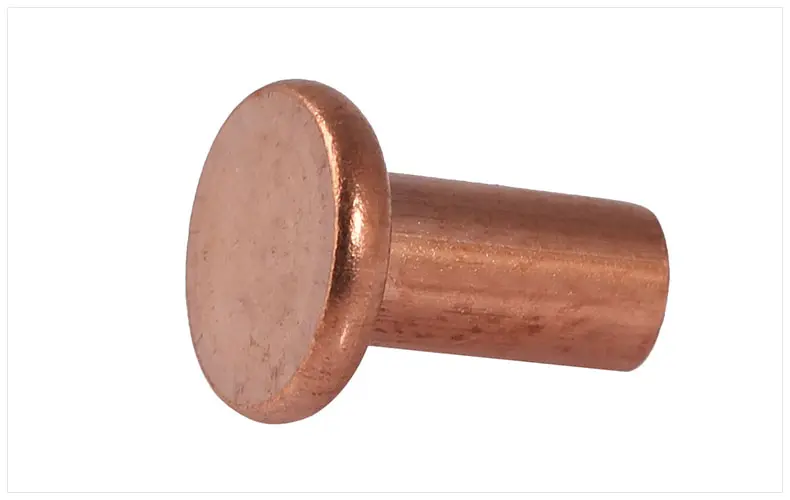

Solid Copper Rivets

  • Copper Rivets
Click image to enlarge
Solid copper rivets are a popular fastener option for a wide range of uses. Offering high strength, a decorative appearance, and numerous other benefits, copper rivets can be found in everything from clothes, shoes, and belts to electronics devices, heavy-duty work bags, and construction applications.

Copper solid rivets are an excellent fastener choice for both functional and aesthetic purposes. Advantages include:
  • High strength
  • Natural corrosion resistance
  • Natural antimicrobial properties
  • Decorative appeal
  • Excellent electrical conductivity
  • Excellent thermal conductivity

Round Head Flat Head
Countersunk Head
Truss Head
Pan Head Universal Head


Category Files



Your #1 Copper Rivets Suppliers

Jay-Cee Sales & Rivet is your leading resource for solid copper rivets. We maintain a huge, in-stock inventory in a range of diameters, lengths, and head styles to meet your unique needs. Our selection includes:
  • Round head solid copper rivets
  • Flat head solid copper rivets
  • Countersunk head solid copper rivets
  • Truss head solid copper rivets (a.k.a. wagon box rivets)
  • Pan head solid copper rivets
  • Universal head solid copper rivets
Available body diameters range from 1/16” to 3/8”. Standard lengths range from 1/8” to 6-1/4”. Our solid copper rivets are manufactured from CDA 110 copper (ASTM B-187). See individual product listings for additional information and specifications.

View our entire inventory to find the copper solid rivets your application requires, or use the filters at left to narrow your search results. With 200-plus options available, we make it easy to find the copper rivets you need.

We are your #1 copper rivets suppliers! Order today, request a quote, or contact Jay-Cee Sales & Rivet to learn more.

Why Use Solid Copper Rivets?

  • Strong, permanent joints: Solid copper rivets are extremely strong and sturdy, making them a great solution for permanent fastener applications. Once installed, copper rivets can only be removed using tools that destroy the rivet.
  • Natural corrosion resistance: Copper is one of several metals that exhibits a relatively high level of natural corrosion resistance, as well as humidity resistance. This makes copper rivets an ideal option for outdoor and marine applications where they are exposed to the elements, as well as for clothing and similar items that are regularly washed/cleaned.
  • Decorative look: Copper has long been used for its aesthetic appeal. This, along with the material’s strength and resilience, makes solid copper rivets popular for applications that need a combination of function and style.
  • Fast & easy assembly: When using a mechanical rivet installer an with automatic feed, copper rivets can be applied at speed up to 3 per second.

Standard Tolerances for Copper Solid Rivets

Diameter of Shank

Nominal Diameter Minus Plus
0.052-.094 0.001 0.003
0.095-0.156 0.001 0.004
0.157-0.219 0.002 0.005
0.220-0.375 0.003 0.006
0.376-0.625 0.004 0.008
0.626-0.875 0.006 0.012
0.876-1.000 0.007 0.015

Length of Shank

  • Diameters of 3/4” up to 4” long, inclusive
  • ±1/64” diameters to 3/4” lengths over 4”
  • ±1/32” diameters over 3/4” to 4” long ±1/32”
  • Diameters over 3/4” in lengths over 4” ±1/16”

Diameter of Head

The heads of these solid copper rivets have not been machined nor trimmed. As such, the circumference may be irregular, and the edges may be rounded or flat.

The diameter of the rivet head shall be within -8° and +4° of the nominal head diameter.

Height of Head

+8°/-4° of the nominal or basic head height, but in no case less than ±0.005”.

Out-of-Roundness of Head & Eccentricity of Head in Relation to Shank (In Inches)

Nominal head diameter Total dial indicator reading resulting from eccentricity and out-of-roundness not to exceed
Up to 1/4” 0.015
Over 1/4” to 3/8” 0.020

Contact Us for Solid Copper Rivets & More

If you need solid copper rivets or other high quality fasteners, you’ve come to the right place! We also offer solid rivets in aluminum, brass, Monel, steel, and stainless steel, as well as large diameter solid rivet options. Order today, request a quote, or contact us for copper rivets for your project.
