Aluminum Drive Rivets

  • Aluminum Drive Rivets
Click image to enlarge

Aluminum Drive Rivets

Product Features and Benefits

All Drive Rivets are just as easy to install, regardless of size or style – just insert in hole and drive pin flush to top of rivet with hammer or pneumatic tool. Pin forces prongs of rivet to flare out below or within fastened materials, creating a strong grip. Leaves a clean non-snagging head when fully installed.
  • Pull-up action, built into the rivet design, clinches fastened materials together as rivet is attached
  • Grip capabilities range from 1.2 mm (.047") to 36.1 mm (1.421") thick
  • Available in six different diameters and numerous lengths to provide the appropriate dimensions for a wide variety of material and dimensional requirements
  • Corrosion-resistant aluminum and stainless steel materials provide excellent long-term performance, even in outdoor applications
  • Tamper-resistant/tamper-evident designs resist being driven through or drilled out

Available Options

  • Long-shaft part numbers designated for masonry use
  • Trailer liner style designed for quick replacement of plywood trailer linings

Industry Applications

  • Automotive, Trucks
  • Construction Equipment, Off-Highway Vehicles, Farm Equipment
  • Marine
  • Others

Category Files

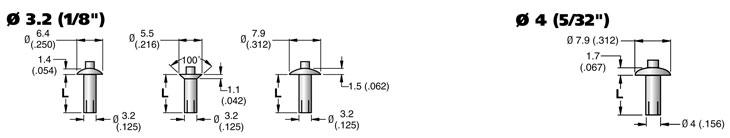

Aluminum Drive Rivet Specifications

drive rivets

Aluminum Drive Rivets

1/8
Part
Numbers
L GRIP L 5/32
PART
NUMBERS
Universal
Head
100 CSK
Head
Full Brazier
Head
MIn. Nom. Max. Universal
Head
100
CSK Head
38-104-01-13     4 (.156) 0.4 (.016) 0.8 (.031) 1.2 (.047) 4.8 (.188) 38-105-01-13
38-104-02-13     4 (.156) 1.2 (.047) 1.6 (.063) 2 (.078) 4.8 (.188) 38-105-02-13
38-104-03-13 38-504-03-13 38-204-03-13 4.8 (.188) 2 (.078) 2.4 (.094) 2.8 (.109) 5.6 (.219) 38-105-03-13
38-104-04-13 38-504-04-13 38-204-04-13 5.6 (.219) 2.8 (.109) 3.2 (.125) 3.6 (.141) 6.4 (.250) 38-105-04-13 38-505-04-13
38-104-05-13 38-504-05-13 38-204-05-13 6.4 (.250) 3.6 (.141) 4 (.156) 4.4 (.172) 7.1 (.281) 38-105-05-13 38-505-05-13
38-104-06-13 38-504-06-13 38-204-06-13 7.1 (.281) 4.4 (.172) 4.8 (.188) 5.2 (.203) 7.9 (.313) 38-105-06-13 38-505-06-13
38-104-07-13 38-504-07-13 38-204-07-13 7.9 (.313) 5.2 (.203) 5.6 (.219) 6 (.234) 8.7 (.344) 38-105-07-13 38-505-07-13
38-104-08-13 38-504-08-13 38-204-08-13 8.7 (.344) 6 (.234) 6.4 (.250) 6.8 (.266) 9.5 (.375) 38-105-08-13 38-505-08-13
38-104-09-13 38-504-09-13 38-204-09-13 9.5 (.375) 6.8 (.266) 7.1 (.281) 7.5 (.297) 10.3 (.406) 38-105-09-13 38-505-09-13
38-104-10-13 38-504-10-13   10.3 (.406) 7.5 (.297) 7.9 (.313) 9.3 (.328) 11.1 (.438) 38-105-10-13 38-505-10-13
38-104-11-13 38-504-11-13   11.1 (.438) 8.3 (.328) 8.7 (.344) 9.1 (.359) 11.9 (.469) 38-105-11-13 38-505-11-13
38-104-12-13 38-504-12-13 38-204-12-13 11.9 (.469) 9.1 (.359) 9.5 (.375) 9.9 (.391) 12.7 (.500) 38-105-12-13 38-505-12-13
38-104-13-13 38-504-13-13   12.7 (.500) 9.9 (.391) 10.3 (.406) 10.7 (.422) 13.5 (.531) 38-105-13-13 38-505-13-13
38-104-14-13     13.5 (.531) 10.7 (.422) 11.1 (.438) 11.5 (.453) 14.3 (.563) 38-105-14-13 38-505-14-13
        11.5 (.453) 11.9 (.469) 12.3 (.484) 15.1 (.594) 38-105-15-13 38-505-15-13
        12.3 (.484) 12.7 (.500) 13.1 (.516) 15.9 (.625) 38-105-16-13 38-505-16-13
        13.1 (.516) 13.5 (.531) 13.9 (.547) 16.7 (.656) 38-105-17-13 38-505-17-13
        13.9 (.547) 14.3 (.563) 14.7 (.578) 17.5 (.688) 38-105-18-13 38-505-18-13
        14.7 (.578) 15.1 (.594) 15.5 (.609) 18.3 (.719) 38-105-19-13 38-505-19-13
        15.5 (.609) 15.9 (.625) 16.3 (.641) 19.1(.750) 38-105-20-13 38-505-20-13

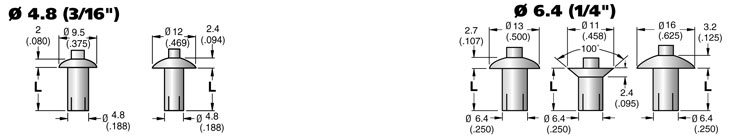

drive rivets

Aluminum Drive Rivets

3/16
Part
Numbers
L GRIP L 1/4
PART
NUMBERS
Universal Head 100 CSK Head Full Brazier Head MIn. Nom. Max. Universal Head 100 CSK Head Full Brazier Head
38-106-02-16   38-206-02-16 6.4 (.250) 1.2 (.047) 2.4 (.094) 3.6 (.141) 6.4 (.250) 38-108-02-16   38-208-02-16
38-106-04-16   38-206-04-16 7.1 (.281) 2 (.078) 3.2 (.125) 4.4 (.172) 7.1 (.281) 38-108-04-16   38-208-04-16
38-106-06-16 38-506-06-16 38-206-06-16 8.7 (.344) 3.6 (.141) 4.8 (.188) 6 (.234) 8.7 (.344) 38-108-06-16 38-508-06-16 38-208-06-16
38-106-08-16 38-506-08-16 38-206-08-16 10.3 (.406) 5.2 (.203) 6.4 (.250) 7.5 (.297) 10.3 (.406) 38-108-08-16 38-508-08-16 38-208-08-16
38-106-10-16 38-506-10-16 38-206-10-16 11.9 (.469) 6.8 (.266) 7.9 (.313) 9.1 (.359) 11.9 (.469) 38-108-10-16 38-508-10-16 38-208-10-16
38-106-12-16 38-506-12-16 38-206-12-16 13.5 (.531) 8.3 (.328) 9.5 (.375) 10.7 (.422) 13.5 (.531) 38-108-12-16 38-508-12-16 38-208-12-16
38-106-14-16 38-506-14-16 38-206-14-16 15.1 (.594) 9.9 (.391) 11.1 (.438) 12.3 (.484) 15.1 (.594) 38-108-14-16 38-508-14-16 38-208-14-16
38-106-16-16 38-506-16-16 38-206-16-16 16.7 (.656) 11.5 (.453) 12.7 (.500) 13.9 (.547) 16.7 (.656) 38-108-16-16 38-508-16-16 38-208-16-16
38-106-18-16 38-506-18-16 38-206-18-16 18.3 (.719) 13.1 (.516) 14.3 (.563) 15.5 (.609) 18.3 (.719) 38-108-18-16 38-508-18-16 38-208-18-16
38-106-20-16 38-506-20-16 38-206-20-16 19.8 (.781) 14.7 (.578) 15.9 (.625) 17.1 (.672) 19.8 (.781) 38-108-20-16 38-508-20-16 38-208-20-16
38-106-22-16 38-506-22-16 38-206-22-16 21.4 (.844) 16.3 (.641) 17.5 (.688) 18.7 (.734) 21.4 (.844) 38-108-22-16 38-508-22-16 38-208-22-16
38-106-24-16 38-506-24-16 38-206-24-16 23 (.906) 17.9 (.703) 19.1 (.750) 20.3 (.797) 23 (.906) 38-108-24-16 38-508-24-16 38-208-24-16
38-106-26-16 38-506-26-16 38-206-26-16 24.6 (.969) 19.4 (.766) 20.6 (.813) 21.8 (.859) 24.6 (.969) 38-108-26-16 38-508-26-16 38-208-26-16
38-106-28-16 38-506-28-16 38-206-28-16 26.2 (1.031) 21 (.828) 22.2 (.875) 23.4 (.922) 26.2 (1.031) 38-108-28-16 38-508-28-16 38-208-28-16
38-106-30-16 38-506-30-16 38-206-30-16 27.8 (1.094) 22.6 (.891) 23.8 (.938) 25 (.984) 27.8 (1.094) 38-108-30-16 38-508-30-16 38-208-30-16
38-106-32-16 38-506-32-16 38-206-32-16 29.4 (1.156) 24.2 (.953) 25.4 (1.00) 26.6 (1.047) 29.4 (1.156) 38-108-32-16 38-508-32-16 38-208-32-16

Note: Special Sizes or Tolerances Quoted upon request.

Note: Not responsible for errors in data tables. Please check with our sales department to confirm specs.

Large Diameter Aluminum Drive Rivets Specifications

drive rivets

Large Diameter Aluminum Drive Rivets

GRIP L 5/16
PART
NUMBERS
MIn. Nom. Max. Universal
Head
3.4 (.132) 4.8 (.188) 6.2 (.242) 11.1 (.438) 38-110-06-16
5.7 (.226) 7.1 (.281) 8.5 (.336) 13.5 (.531) 38-110-09-16
8.1 (.320) 9.5 (.375) 10.9 (.430) 15.9 (.625) 38-110-12-16
10.5 (.414) 11.9 (.469) 13.3 (.523) 18.3 (.719) 38-110-15-16
12.9 (.508) 14.3 (.563) 15.7 (.617) 20.6 (.813) 38-110-18-16
15.3 (.601) 16.7 (.656) 18.1 (.711) 23 (.906) 38-110-21-16
17.7 (.695) 19.1 (.750) 20.5 (.804) 25.4 (1.000) 38-110-24-16
20 (.789) 21.4 (.844) 22.8 (.898) 27.8 (1.094) 38-110-27-16
22.4 (.882) 23.8 (.938) 25.2 (.992) 30.2 (1.188) 38-110-30-16
24.8 (.976) 26.2 (1.031) 27.6 (1.086) 32.5 (1.281) 38-110-33-16

Note: Special Sizes or Tolerances Quoted upon request.

drive rivets

Large Diameter Aluminum Drive Rivets

GRIP L 3/8
PART
NUMBERS
Min. Nom. Max. Universal
Head
3.2 (.125) 4.8 (.188) 6.4 (.250) 12.7 (.500) 38-112-06-16
5.5 (.219) 7.1 (.281) 8.7 (.344) 15.1 (.594) 38-112-09-16
7.9 (.313) 9.5 (.375) 11.1 (.438) 17.5 (.688) 38-112-12-16
10.3 (.406) 11.9 (.469) 13.5 (.531) 19.8 (.791) 38-112-15-16
12.7 (.500) 14.3 (.563) 15.9 (.625) 22.2 (.875) 38-112-18-16
15.1 (.594) 16.7 (.656) 18.3 (.719) 24.6 (.696) 38-112-21-16
17.5 (.688) 19.1 (.750) 20.7 (.813) 27 (1.063) 38-112-24-16
19.8 (.781) 21.4 (.844) 23 (.906) 29.4 (1.156) 38-112-27-16
22.2 (.875) 23.8 (.938) 25.4 (1.000) 31.8 (1.250) 38-112-30-16
24.6 (.969) 26.2 (1.031) 27.8 (1.094) 34.1 (1.344) 38-112-33-16

Note: Special Sizes or Tolerances Quoted upon request.

Note: Not responsible for errors in data tables. Please check with our sales department to confirm specs.

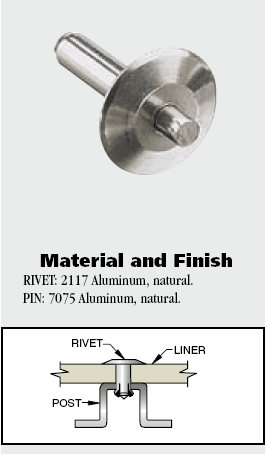

Trailer Liner Rivets

Large Diameter Aluminum Drive Rivets

GRIP L 3/16
PART
NUMBERS
Min. Max.
1.9 (.075) 4.4 (.175) 7.1 (.281) 10-11-706-13
4.4 (.175) 7 (.275) 9.9 (.391) 10-12-706-13
7 (.275) 9.5 (.375) 12.3 (.484) 10-13-706-13
9.5 (.375) 12.1 (.475) 14.7 (.578) 10-14-706-13
12.1 (.475) 14.6 (.575) 17.5 (.688) 10-15-706-13
14.6 (.575) 17.1 (.675) 19.8 (.781) 10-16-706-13

Note: Special Sizes or Tolerances Quoted upon request.

Note: Not responsible for errors in data tables. Please check with our sales department to confirm specs.
