Interlock® - Magna-Lok® - Ultragrips® - Kliklock® Structural Blind Rivets

  • Interlock® - Magna-Lok® - Ultragrips® - Kliklock® Structural Blind Rivets

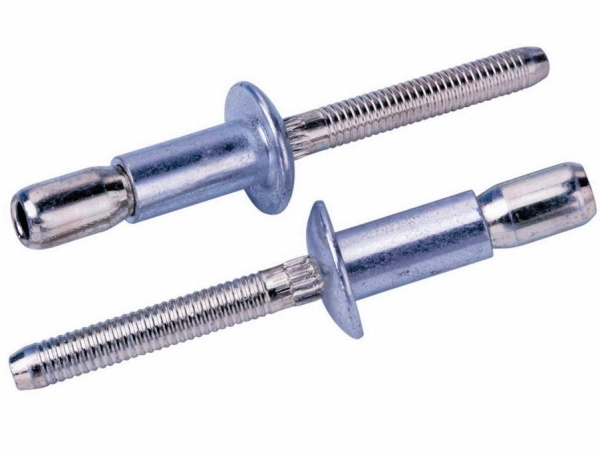

Click image to enlarge


Structural blind rivets offer a wide grip range for versatility, and are designed for high strength and excellent clamp force. Structural rivets also include a mechanical lock feature that ensures 100% mandrel retention, and the mandrel fills the rivet for enhanced shear strength.

Jay-Cee Sales & Rivet carries a full line of structural blind rivets. Our inventory includes Interlock® rivets, Kliklock® rivets, Ultragrips® rivets, and Magna-Lok® rivets. An array of diameters, grip ranges, head styles, and material options are available to meet your specific fastening requirements. See individual product listings for additional information and specifications.

Follow the links below to find the structural blind rivets you need, or use the filters at left to narrow your search. Order structural rivets today, request a quote, or contact us to learn more.

Structural Blind Rivets
Available in Steel, Stainless Steel, and Aluminum
Product Specifications


3/16  Steel   Alum   Stainless
Shear 1300 600 1300
Tensile 1200 500 950
Pin Pushout 150 50 100
1/4  Steel   Alum   Stainless
Shear 2500 1300 2350
Tensile 2200 890 1800
Pin Pushout 300 100 200







Product Specifications



Head

Style

Rivet

Dia.

Nom.

JAY-CEE

Series

Number

Grip

Range

(Inches)

Hole Size

Drill No.

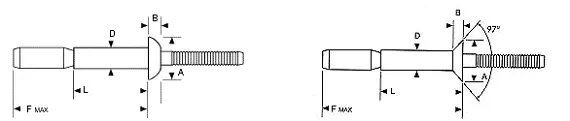

Dimensions (Inches)

D

B

Max.

A

L

Max.

F

Dome

3/16"

#64

.062-.270

.194-.204

.185-.188

0.088

.353-.373

0.415

0.675

#67 Extended Grip

.062-.437

#8

0.572

0.95

1/4"

#86

.080-.375

.261-.272

.253-.257

0.116

.480-.500

0.56

0.97

#810 Extended Grip

.080-.625

H

0.81

1.405

Counter-

sunk

3/16"

#66

.125-.331

.194-.204

.185-.188

0.072

.321-.338

0.486

0.8

#68

.275-.500

#8

Ref.

0.606

1.032

1/4"

#87

.125-.437

.261-.272

.253-.257

0.079

.410-.422

0.66

1.2

#812

.417-.725

H

Ref.

Note: This table reflects typical results in test parameters.









Category Files



Interlock® Rivets


Interlock® rivets feature a multi-grip design for use in materials of varying thicknesses. These structural rivets provide excellent hole-fill to create fully sealed joints, can close large gaps, and prevent sheet movement. High shear and tensile strength allow for the use of fewer fasteners.


Magna-Lok® Structural Rivets


Magna-Lok® structural blind rivets utilize a unique circle-lock feature to ensure a secure and vibration resistant joint, each and every time. The locking mechanism is built into the fastener to eliminate tooling and operator error; this also allows Magna-Lok® rivets to be installed with conventional rivet tools.


Ultragrips® Structural Rivets


Ultragrips® rivets provide a wide grip range, high strength, and outstanding clamp-up force. They are specially designed for reliable mandrel retention in any application.


Kliklock® Rivets


Kliklock® rivets employ a one-of-a-kind 360° internal locking feature that creates a reliable internal lock during installation that eliminates pin push-out. These structural blind rivets are strong, consistent solutions for challenging fastener applications.


Options for Structural Blind Rivets


Materials
  • All 18-8 stainless steel
  • All aluminum
  • All steel

Body Diameter
  • 3/16”
  • 1/4”

Grip Range
  • Minimum: 0.062-0.270
  • Maximum: 0.417-0.724

Head Style
  • Dome head
  • Countersunk head

We also offer Q Rivets structural blind rivets.
