2 Piece Mate Rivets

  • 2 Piece Mate Rivets

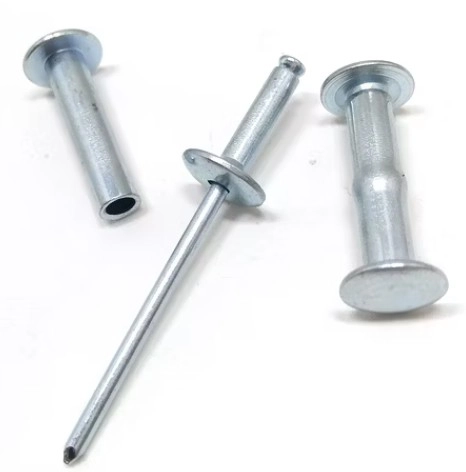

Click image to enlarge

2 piece mate rivets are non-structural fastening rivets for extra-long grip applications. To install 2 piece rivets, access to both sides of the work piece is required. The tubular component is inserted from one side, and the rivet itself is inserted from the opposite side. The fastener is set with a rivet tool, which expands the rivet inside the tubular component to create a tight, secure grip without damaging the host material. Two-piece rivets do not require close tolerance holes for proper installation.







Jay-Cee Sales & Rivet offers 2 piece rivets in 3/16” and 1/4” diameters, with three material options and grip range up to 3-7/8”. Our 2 piece mate rivets are equivalent to Cherrymates® and Auto-Clamps® fasteners.

Features & Benefits of 2 Piece Rivets
Extra wide grip range: Can be used in materials up to 3-7/8” thick
Controlled clamp up: Clamps securely without crushing parent material
Non-critical tolerances: Close-tolerance hole preparation is not required
See individual product listings for additional information and specifications.

Order Two-Piece Rivets Today

Follow the links below to find the two-piece rivets you need, or use the filters at left to narrow your search results. Order 2 piece mate rivets today, request a quote, or contact us to learn more.

 Dimensional Data



Tubular
Component
Diam.



Hole Size &
Drill Number
Blind Rivet

Tubular Comp.

Mandrel
Diam.

Rivet
Diam.

Head
Diam.

Head
Thick

Rivet
Diam

Head
Diam.

Head
Thick

3/16" (4.8mm)

250 (6.4)

.076 (1.9)

.125 (3.2)

.375 (9.5)

.059 (1.5)

.188 (4.8

.375 (9.5)

.057 (1.)

1/4" (6.5mm)

.312 (7.9)

.114 (2.9)

.187 (4.8)

.625 (15.9)

.095 (2.4)

.250 (6.4)

.625 (15.9)

.095 (2.4)

Tubular
Component Diam.

G Grip Range

L1 Rivet Length
(Max.)

L2 Comp. Length
(Max.)

Blind Rivet Alum.
Sleeve Alum. Mandrel
Tubular Comp. Aluminum

Blind Rivet Steel
Mandrel Plated Steel
Tubular Comp. Steel Plated

Blind Rivet Alum.
Sleeve Steel
Plated Tubular Comp. Aluminum

3/16"
(4.8mm)

5/8 to 3/4

.525 (13.3)

.585 (14.9)

BALM-6BP-12

SSLM-6SP-12

BSLM-6BP-12

11/16 to 7/8

.525 (13.3)

.647 (16.4)

BALM-6BP-14

SSLM-6SP-14

BSLM-6BP-14

7/8 to 1-1/16

.525 (13.3)

.825 (21.0)

BALM-6BP-17

SSLM-6SP-17

BSLM-6BP-17

1-1/16 to
1-1/4

.525 (13.3)

1.012 (25.7)

BALM-6BP-20

SSLM-6SP-20

BSLM-6BP-20

1-1/4 to
1-7/16

.525 (13.3)

1.200 (30.5)

BALM-6BP-23

SSLM-6SP-23

BSLM-6BP-23

1-7/16 to
1-5/8

.525 (13.3)

1.387 (35.2)

BALM-6BP-26

SSLM-6SP-26

BSLM-6BP-26

1-5/8 to
1-13/16

.525 (13.3)

1.575 (40.0)

BALM-6BP-29

SSLM-6SP-29

BSLM-6BP-29

1-13/16 to 2"

.525 (13.3)

1.762 (44.8)

BALM-6BP-32

SSLM-6SP-32

BSLM-6BP-32

2" to
2-3/16

.525 (13.3)

1.950 (49.5)

BALM-6BP-35

SSLM-6SP-35

BSLM-6BP-35



1/4" (6.5mm)



5/8 to
3/4

.442

(11.2)

.580 (14.7)

BALM-8BP-12

SSLM-8SP-12

BSLM-8BP-12

3/4 to
7/8

.442 (11.2)

.695 (17.7)

BALM-8BP-14

SSLM-8SP-14

BSLM-8BP-14

7/8 to
1-1/8

.608 (15.4)

.820 (20.8)

BALM-8BP-18

SSLM-8SP-18

BSLM-8BP-18

1-1/8 to
1-3/8

.608 (15.4)

1.070 (27.2)

BALM-8BP-22

SSLM-8SP-22

BSLM-8BP-22

1-3/8 to
1-5/8

.608 (15.4)

1.320 (33.5)

BALM-8BP-26

SSLM-8SP-26

BSLM-8BP-26

1-5/8 to
1-7/8

.608 (15.4)

1.570 (39.9)

BALM-8BP-30

SSLM-8SP-30

BSLM-8BP-30

1-7/8 to
2-1/8

.608 (15.4)

1.820 (46.2)

BALM-8BP-34

SSLM-8SP-34

BSLM-8BP-34

2-1/8 to
2-3/8

.608 (15.4)

2.070 (52.6)

BALM-8BP-38

SSLM-8SP-38

BSLM-8BP-38

2-3/8 to
2-5/8

.608 (15.4)

2.320 (58.9)

BALM-8BP-4




2 Piece Rivets for All Applications


With two standard sizes, three material options, and a variety of grip ranges to choose from, Jay-Cee Sales & Rivet is sure to have the right 2 piece mate rivets for your application.

If you can’t find the two-piece rivets you need in our inventory, don’t hesitate to contact us. We’ll help you find 2 piece rivets that meet your requirements.



Options for 2 Piece Mate Rivets


Grip Range
  • Minimum: 5/8 to 3/4
  • Maximum: 3-5/8 to 3-7/8

Materials
  • Aluminum rivet/steel mandrel/aluminum component
  • All aluminum
  • All steel

Tubular Component Diameter
  • 3/16”
  • 1/4”

 Contact Us for 2 Piece Mate Rivets & More


Jay-Cee Sales & Rivet is the only resource you need for two-piece rivets and other premium fastener solutions. We carry solid rivets, split rivets, tinner rivets, and much more. Order today, request a quote, or contact us for 2 piece mate rivets for your application.
