Bulbex® Trifold Rivets (Tribex® Rivets)
Bulbex® trifold rivets are a style of blind rivets that are specially designed for structural and other high-strength applications. Also called Tribex® rivets, these tri fold rivets feature a slotted sheath; when installed, the sheath splits to create three “wings” that provide a large bearing surface. This unique design helps Bulbex® blind rivets resist pullout or cracking when installed in brittle and/or soft materials such as plastic.
Jay-Cee Sales & Rivet stocks Tribex® rivets in low profile and large flange head styles, with two body diameters and a variety of grip ranges available. These trifold provide tensile strength up to 1,070 lbs. and shear strength as high as 780 lbs.
Follow the links below to find Bulbex® blind rivets for your application, or use the filters at left to narrow your search. Order the trifold rivets you need today, request a quote, or contact us for more information.
Bulbex® Blind Rivet Specifications (Also known as Tribex® - Trifold® Blind Rivets)
|
Series |
Head Style |
Material |
Finish |
||
|
Rivet |
Mandrel |
Rivet |
Mandrel |
||
|
AAPAB |
Lo Profile
|
Aluminum |
Aluminum |
Plain |
Plain |
|
AALAB |
Large Flange
|
Aluminum |
Aluminum |
Plain |
Plain |
|
|

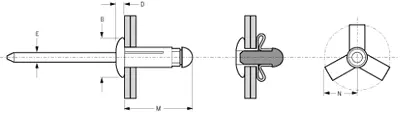

Lo-Profile Head |
Large-Flange Head |
||||||
|
Nom. Rivet Diam. |
Hole Size |
E Max. |
A Rivet Diam. |
B Nom. Head Diam. |
D Max. Head Ht. |
B Nom. Head Diam. |
D Max. Head Ht. |
|
|
5/32" |
.165-.177 |
0.09 |
0.165 |
0.312 |
0.06 |
- |
- |
|
|
(4.0mm) |
(4.20-4.50mm) |
(2.27mm) |
(4.19mm) |
(7.9mm) |
(1.53mm) |
- |
- |
|
|
3/16" |
.197-.207 |
0.112 |
0.197 |
0.387 |
0.08 |
0.61 |
0.08 |
|
|
(4.8mm) |
(5.00-5.25mm) |
(2.83mm) |
(5mm) |
(9.83mm) |
(2.04mm) |
(15.5mm) |
(2.04mm) |
|
|
Rivet Diam. |
Grip Range |
M Max. |
AAPAB - Dome Head Aluminum Rivet Aluminum Mandrel |
AALAB - Large Flange Head Aluminum Rivet Aluminum Mandrel |
|
5/32" (4.0mm) |
.040-.118 (1.00-3.00mm) |
.630 (16mm) |
- |
|
|
.040-.275 (1.00-7.50mm) |
.840 (21.2mm) |
- |
||
| .040-.375 |
.970 |
PR56AAPAB | ||
|
.040-.500 |
1.095 | PR58AAPAB | ||
|
3/16" (4.8mm) |
.040-.157 (1.00-4.00mm) |
.720 (18.3mm) |
||
|
.062-.250 (1.57-6.35MM) |
.770 (19.55MM) |
PR64AAPAB | PR64AALAB | |
|
.040-.354 (1.00-9.00mm) |
.920 (23.3mm) |
|||
|
.157-.472 (4.00-12.00mm) |
1.07 (27.1mm) |
|
||
|
.437-.625 |
1.263 | PR610AAPAB | ||
| .563-.750 | 1.388 | PR612AAPAB |
|
Typical Rivet Shear and Tensile Strength lbf. (N) BULBEX™ |
||
|
Rivet Diameter |
AAPAB/AALAB Aluminum |
|
|
Shear |
Tensile |
|
|
5/32" (4.0mm) |
135 (600) |
225 (1000) |
|
3/16" (4.8mm) |
175 (780) |
240 (1070) |
Tribex® Rivets for All Applications
Jay-Cee Sales & Rivet stocks a variety of Tribex® tri fold rivets. We offer low profile dome head and large flange head options, in 5/32” and 3/16” body diameters and with grip ranges from 0.040-0.118 to 0.437-0.625. All models feature all aluminum construction. See individual product listings for additional information and specifications.
If you can’t find the Bulbex® trifold rivets you need in our inventory, please contact us. We’ll help you find the right option for your unique application.
Options for Bulbex® Blind Rivets
Head Style
- Low profile dome head
- Large flange head
Materials
- All aluminum
Grip Range
- Minimum: 0.040-0.118
- Maximum: 0.437-0.625
Body Diameter
- 5/32”
- 3/16”
Contact Us for Trifold Rivets & More
Jay-Cee Sales & Rivet is a leading supplier of Tribex® trifold rivets and other quality fastener solutions. We offer a huge selection of solid rivets, split rivets, and much more. Order today, request a quote, or contact us for the tri fold rivets you need.
