Peel Type Blind Rivets

  • Peel Type Blind Rivets

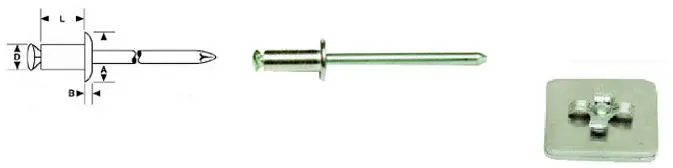

Click image to enlarge

Peel type rivets are a type of blind rivet designed for improved support in brittle, soft, or ductile materials. The mandrel of peel rivets is designed to split the end of the rivet body into four separate legs to create a large blindside bearing surface. The legs clamp the material tightly and spread the load over a wide area. This significantly reduces the risk of the rivet breaking through brittle material or sinking into soft materials. Peel rivets are ideal for use in wood, insulation, plasterboard, and plastic materials.

Jay-Cee Sales & Rivet stocks dome head peel type rivets in various lengths, diameters, and grip ranges to meet your needs. All models feature aluminum bodies with steel mandrels. See individual product listings for additional information and specifications.

Follow the links below to find the peel type blind rivets your application requires, or use the filters at left to narrow your search. Order peel rivets today, request a
quote, or contact us for more information.



Aluminum Rivets with a Steel Mandrel

Head Style

Rivet Dia. Nom

JAY-CEE Part Number

GripRange(inch)

Hole Size Drill No.

Dimensions (Inches)



D

B Max.

A

L
Max.

Dome

1/8"

PR42ASPP
PR43ASPP
PR44ASPP
PR46ASPP
PR47ASPP

.039 - .138
.098 - .197
.177 - .276
.256 - .354
.335 - .433

.142
#27

.122 - .138

.048

.228 - .256

.354
.433
.512
.590
.669

Dome

5/32"

PR52ASPP
PR53ASPP
PR54ASPP
PR55ASPP
PR56ASPP
PR58ASPP
PR510ASPP

.039 - .118
.098 - .197
.177 - .256
.236 - .315
.295 - .394
.354 - .422
.452 - .551

.173
#17

.151 - .169

.059

.275 - .315

.354
.433
.512
.590
.669
.748
.827

Dome

3/16"

PR62ASPP
PR63ASPP
PR64ASPP
PR65ASPP
PR66ASPP
PR68ASPP
PR610ASPP
PR612ASPP

.039 - .118
.098 - .197
.177 - .276
.256 - .354
.335 - .394
.375 - .472
.453 - .551
.531 - .748

204
#6

.183 - .201

.063

.335 - .374

.354
.433
.512
.590
.669
.748
.827
1.024





Min. Strength (lbs)

Shear

Tensile

1/8 Diameter  180

1/8 Diameter 213

5/32 Diameter 315

5/32 Diameter 450

3/16 Diameter 450

3/16 Diameter 607

Prices quoted below are per box of 100 pcs. Select options for further price breaks.



Peel Type Rivets for All Applications


With our large selection of peel type rivets, Jay-Cee Sales & Rivet makes it easy to find the right option for your application. We stock peel rivets in 1/8”, 5/32”, and 3/16” nominal diameters, lengths from 0.354 to 1.024, and with grip ranges from 0.039-0.118 to 0.531-0.748.

If you don’t see the right peel type rivets for your application listed here, don’t hesitate to contact us. We can help you find the peel rivets you need.



Options for Peel Type Rivets


Head Style
  • Dome

Materials
  • Aluminum body/steel mandrel

Grip Range
  • Minimum: 0.039-0.118
  • Maximum: 0.531-0.748

Rivet Diameter (Nominal)
  • 1/8”
  • 5/32”
  • 3/16”

Length
  • Minimum: 0.354
  • Maximum: 1.024


Contact Us for Peel Rivets & More


Make Jay-Cee Sales & Rivet your first choice for peel type blind rivets and other high quality fastener solutions. We stock solid rivets, split rivets, and much, much more. Order today, request a quote, or contact us for peel rivets for your application.
