Compression/ Speedy / Rapid Rivets
Rapid rivets come in two pieces—a stem and a cap—and are easy to install. First, punch/cut/drill a hole in each part; then, push the cap through the hole and insert the stem; place the rivet on a firm surface; finally, hit the rivet lightly with a hammer or use a rivet press tool. The impact/pressure will compress the cap and stem (hence, “compression rivet”) to securely the material.
Jay-Cee Sales & Rivet offers high quality compression rivets in a range of sizes and materials to meet your needs. Follow the links below to find speedy rivets for your project, request a quote, or contact us to learn more.
Read more about compression rivets below!
Rapid Rivets for All Applications
We maintain a huge inventory of rapid rivets. Our selection includes steel compression rivets and brass compression rivets, with a variety of finish options. We stock rapid rivets in a range of standard sizes from 02 to 80 (see chart below for sizes and dimensions). We also carry rapid rivet presses and die sets for fast and easy installation. Jay-Cee Sales & Rivet is your #1 source for compression rivets.
See individual product listings for additional information and specifications.

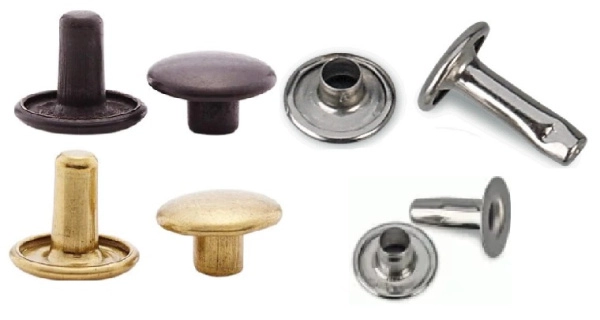

Available in the following materials
steel-nickle plated rivet * steel-brass plated rivet
steel-black plated rivet * brass-plain finish rivet * brass-nickle plated rivet
|
**SIZE 80 is a single cap stem as seen below.
** Size 80 is a single cap 2 piece rivet as shown above**
Note: Not responsible for errors in data tables. Please check with our sales department to confirm specs.
Tool Suggestions: CI-70 RIVET PRESS
CI-70 RIVET PRESS
Die Sets for CI-70 Rivet Press
Rivet Series | -02 | -03 | -04 | -05 | -11 | -12 | -75 | -76 | -80 |
Die Set No. | CR-02 | CR-03 | CR-04-05 | CR-04-05 | CR-11-76 | CR-12-80 | CR-04-05 | CR-11-76 | CR-12-80 |
PART NUMBER | DIAMETER - A | HEAD DIAM. - B | GRIP RANGE | STEM LENGTH - L |
SIZE 02 | .129" | .222" | .040"-.145" | .225" |
metric | 3.30mm | 5.65mm | .52mm-3.70mm | 5.75mm |
SIZE 03 | .150" | .275" | .040"-.187" | .290" |
metric | 3.80mm | 7.05mm | .52mm-4.75mm | 7.40mm |
SIZE 04 | .145" | .365" | .040"-.218" | .345" |
metric | 3.70mm | 9.25mm | .52mm-5.55mm | 8.80mm |
SIZE 05 | .154" | .355" | .040"-.305" | .409" |
metric | 3.90mm | 9.00mm | .52mm-7.75mm | 10.40mm |
SIZE 11 | .154" | .437" | .040"-.312" | .420" |
metric | 3.90mm | 11.00mm | .52mm-7.95mm | 10.70mm |
SIZE 12 | .176" | .500" | .040"-.312" | .437" |
metric | 4.5mm | 13mm | .52mm-7.95mm | 11mm |
SIZE 75 | .140" | .395" | .040"-.437" | .562" |
metric | 3.65mm | 10mm | .52-11mm | 14.30mm |
SIZE 76 | .184" | .430" | .040"-.437" | .550" |
metric | 4.80mm | 10.90mm | .52mm-11.10mm | 13.35mm |
**SIZE 80 | .238" | .500" | .040"-.625" | .690" |
metric | 6.30mm | 12.80mm | 1.55mm-15.90mm | 17.60mm |
Speedy Rivet Options
- Sizes: from 02 to 80 (Size 80 is a single cap 2-piece rivet)
- Tool suggestion: CI-70 compression rivet press
Material & Finish
- Nickel-plated steel speedy rivets
- Brass-plated steel speedy rivets
- Black-plated steel speedy rivets
- Plain finish brass speedy rivets
- Nickel-plated brass speedy rivets
Contact Us for the Compression Rivets You Need
For high quality compression rivets at competitive prices and with fast deliveries, look no further than Jay-Cee Sales & Rivet. Order rapid rivets for your application, request a quote, or contact us for more information.
